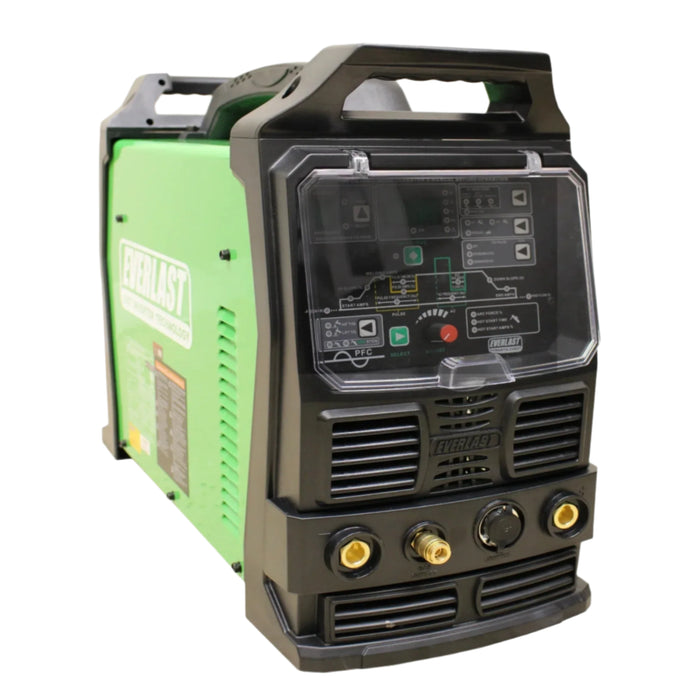

Everlast PowerTIG 210EXT Digital AC/DC TIG Welder

If you’ve ever used a welder with digital microprocessor control, you already know the difference it makes. With the PowerTIG 210EXT, you’ll enjoy numerous benefits, including enhanced productivity, superior weld quality, and the ability to fine-tune settings to meet precise specifications.

This versatile TIG/Stick welder from Everlast is built with IGBT inverter technology, offering exceptional arc stability and performance while keeping the unit compact and lightweight. The PowerTIG 210EXT features advanced waveform control with three distinct options: Advanced Square Wave, Soft Square Wave, and Triangular, providing the flexibility needed for welding aluminium.

But that’s just the beginning. The PowerTIG 210EXT also includes programmable memory, adjustable AC frequency, and adjustable AC balance control. It excels as a stick welder too, with features like adjustable hot start and arc force control for maximum flexibility.

The heavy-duty HF arc start design minimizes maintenance issues associated with traditional high-frequency components, ensuring reliable operation. Additionally, the welder offers two pulse modes: Standard Pulse and Advanced Pulse. In Advanced Pulse mode, the welder switches between AC and DC polarity, providing fine control for thin gauge aluminium and deeper penetration for thicker plates.

While the PowerTIG 210EXT boasts a range of advanced features, its intuitive design makes setup quick and easy, whether you’re a seasoned professional or a welding enthusiast.

Features & Benefits:

• Precise Microprocessor Control: Offers exact management of welding parameters and functions, ensuring optimal results every time.

• Portable & Lightweight Design: Built with a rugged exterior and includes a flip-down visor to protect the panel from sparks and damage during use.

• Advanced Pulse Options: Includes a standard pulse feature for both AC and DC modes, plus an Advanced Pulse mode for AC. This is perfect for welding thin materials, increasing travel speed, and minimizing warping.

• Finger Amp Control Torch Compatibility: Can be used with an optional finger amp control torch for added precision and convenience.

• Waveform Control: Offers three distinct waveform options for AC welding—Triangular Wave, Advanced Square Wave, and Soft Square Wave—for flexibility in different welding applications.

• Programmable Memory: Save your settings with up to 9 programmable memory slots, making it easy to recall your preferred settings for various jobs.

• HF or Lift Arc Start: Choose between High-Frequency (HF) or Lift Arc start modes in both AC and DC settings for better arc control.

• Programmable Stick Functions: Features adjustable hot start time, hot start intensity, and arc force control, providing full customization for stick welding tasks.

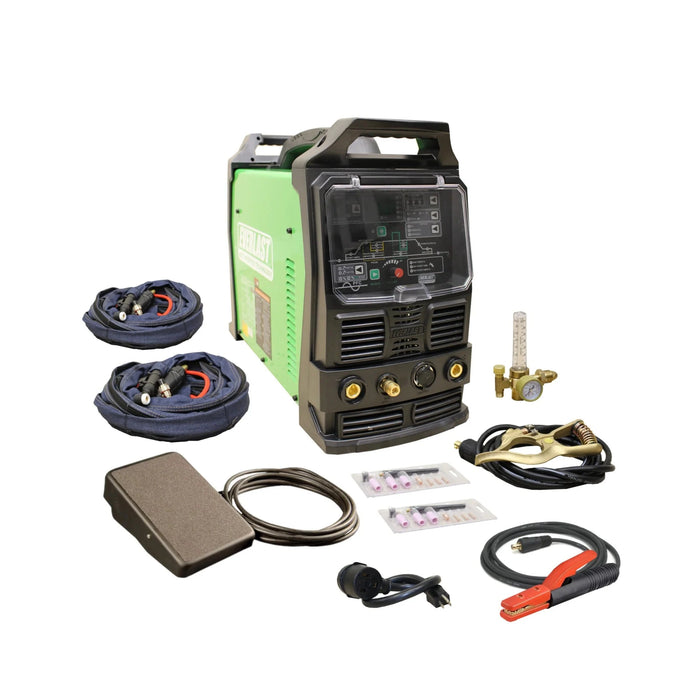

What's Included:

• 12 ft.  Everlast 26 series TIG torch with remote switch and 35 series DINSE style connector
• 12 ft.  Everlast 9 series TIG  torch with remote switch and 35 series DINSE style connector
• Heavy duty Stick electrode holder with 10ft cable and 35 series DINSE connector
• Foot pedal
• Work Clamp with 10ft cable and series 35 Dinse style connector
• Everlast billet brass Argon regulator
• 6 ft. power input cable with Plug
• Consumable Starter Kit (Tungsten not included)

Specifications:

• IGBT Type: Module IGBT
• Inverter Type: Digital/Micro-controlled
• Output Type: AC/DC TIG, DC Stick
• Voltage/phase: DUAL VOLTAGE 120/240 1 PHASE
• Max Rated TIG Amps: 210 A Max Rated Stick Amps: 160A
• TIG Amps @ Rated Duty Cycle: @240V: 210A/18.4V @ 60% Duty Cycle/ 40° C
• Stick Amps @ Rated Duty Cycle: @ 240V: 160A/26.4V @ 60% Duty Cycle/ 40º C 130A/25.2V @100% Duty Cycle/40°
• Max Inrush (I1MAX) Amps: @240V: 24A
• Maximum Rated (I1EFF) Input Amps: @240V:19A
• OCV: 70V/<24V with VRD
• TIG Output Range DC: @240V: 3A-210A/ 10.1V-18.4V
• TIG Output Range AC: @240V:  5A-210A/10.2V-18.4V
• Stick Ouput Range DC: @240V: 20A-160A/ 20.8V-26.4V
• Stick Hot Start Amps: 0-100%
• Stick Function: Adjustable Arc Force Control
• Stick Hot Start Type: Adjustable Hot Start
• Stick Hot Start Time: 0-2 Seconds
• 6010/Cellulose Capable: Limited to 6011
• Minimum Amp DC TIG Start: 5A
• Minimum Amp AC TIG Start: 5A
• TIG Start Type: HF and Lift Start
• Memory: Yes
• Start Amp Range: 240V @DC: 5-210A @AC: 5-210A
• End Amp Range: 240V DC: 3-210A @AC: 5-210A
• Upslope Time: 0-25 Seconds
• Down Slope Time: 0-25 Seconds
• Preflow time: 0-25 Seconds
• Post Flow Time: 0-50 Seconds
• TIG Pulse: Yes
• Standard DC Pulse Frequency: .1-500 Hz
• Standard AC Pulse Frequency: .1-250 Hz Advanced Square Wave & .1-10 Hz Soft Square, Triangular
• AC Advanced Pulse Frequency: .1-10 Hz
• Pulse Time On (Duty Cycle): 5-100%
• Pulse Amp Range: 5-99% of Welding Amps
• AC Frequency (Hz): 20-250 Hz
• AC Balance Range: 5-90% of EP (+)
• AC Wave Forms: Advanced Square Wave, Soft Square Wave &Triangular
• Remote Control: 2T/4T with Torch Amptrol settings
• Foot Pedal: Upgraded NOVA
