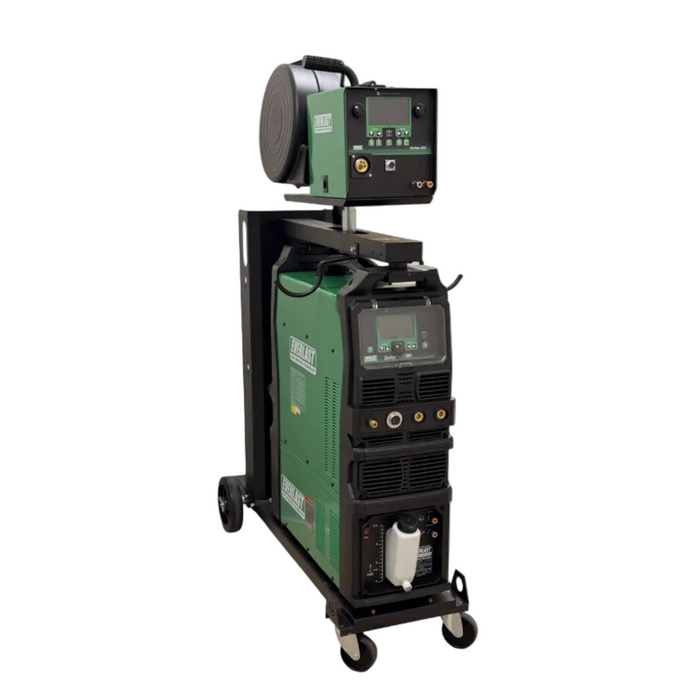

Cyclone 373DPi Advanced Pulse Mig Welding Machine
The Everlast Cyclone 373DPi is the latest generation digital Single and Double Pulse MIG welder, building on the proven performance of its predecessor with increased power, enhanced functionality and an intuitive user interface.
Designed for professional fabrication, manufacturing and production environments, the Cyclone 373DPi features a fully digital IGBT inverter, advanced synergic controls, and separate wire feeder with integrated HD colour display. The system supports conventional MIG, Single Pulse, Double Pulse, Flux-Cored MIG, DC Lift TIG and Stick welding, making it an extremely versatile workshop machine.
The remote wire feeder provides complete control over all MIG functions, while the main power source includes an integrated water cooler and heavy-duty trolley, delivering a complete water-cooled welding package ready for demanding industrial applications.
Features & Benefits
- Digital IGBT inverter technology
- 60% duty cycle at 370A (MIG)
- Single Pulse and Double Pulse (Pulse-on-Pulse) MIG
- Gas-shielded and self-shielded flux-cored welding
- DC Lift TIG capability (optional gas valve TIG torch required)
- Stick welding with E6010 capability
- Heavy-duty 4-roll wire drive system
- Accepts 300 mm wire spools
- Water-cooled 510 Series MIG torch
- Weld steel, stainless steel, aluminium and silicon bronze
- Generation 2 PowerSet synergic setup
- Aluminium Push-Pull gun compatible
- Separate wire feeder
- 110 mm HD colour LCD display on power source
- 130 mm HD colour LCD display on wire feeder
- All MIG controls located on the wire feeder
- Easy-to-use menu system with all settings displayed on one screen
- Adjustable MIG inductance and Stick arc force
- Save and name up to 30 welding programs
- Includes U-groove drive rolls and PTFE liner for aluminium welding
- Stable, low-spatter welding arc
What's Included:
- 510 Series water-cooled MIG torch with 4.5 m lead
- Integrated water cooler
- Heavy-duty welding trolley
- Earth clamp with 3 m lead and 35 DINSE connector
- Electrode holder with 3 m lead and 35 DINSE connector
- Argon/CO₂ regulator and flowmeter with gas hose
- Installed U-groove drive rolls (1.2–1.6 mm)
- Spare U-groove drive rolls (0.8–0.9 mm)
- Spare 1.2 mm aluminium contact tips
- PTFE liner for 1.2–1.6 mm aluminium wire
Specifications:
Machine Type
Digital Microprocessor Controlled IGBT Inverter
Welding Processes
- MIG
- Single Pulse MIG
- Double Pulse MIG
- Flux-Cored MIG
- DC Lift TIG
- DC Stick
Input Power
- 400 V
-
3 Phase
Output
| Specification | Value |
|---|---|
| Maximum MIG Output | 375 A |
| Maximum TIG Output | 350 A |
| Maximum Stick Output | 350 A |
| MIG Duty Cycle | 370 A @ 32.5 V @ 60% |
| TIG Duty Cycle | 350 A @ 24 V @ 60% |
| Stick Duty Cycle | 350 A @ 34 V @ 60% |
| Open Circuit Voltage | 82 V |
Output Range
| Process | Output |
|---|---|
| MIG | 35–370 A / 15.75–32.5 V |
| TIG | 10–350 A / 10.4–24 V |
| Stick | 10–350 A / 20.4–34 V |
Machine Features
- Variable MIG Inductance
- Adjustable Stick Arc Force
- Double Pulse / Pulse-on-Pulse
- Fully Synergic PowerSet
- Separate Wire Feeder
- 4 Drive Roll Feed System
- Wire Feed Speed up to 17.8 m/min
- Accepts 300 mm wire spools
- Program Memory (30 presets)
- 2T / 4T Trigger Modes
- Water-cooled 510 Series Euro Torch
Material Capacity:
Steel & Stainless Steel
- Single-pass welding up to 11 mm
- Multi-pass welding over 19 mm
- Pulse welding down to approximately 0.4 mm sheet
Aluminium
Using the supplied water-cooled torch, PTFE liner and U-groove drive rolls:
- Single-pass welding up to 10 mm
- Multi-pass welding over 19 mm
- Pulse welding down to approximately 0.6 mm
For longer aluminium welding distances, a Push-Pull torch such as the Parker SG360A or Parker DSP360 is recommended.
MIG Brazing
- Minimum material thickness: 0.6 mm
- Practical maximum thickness: 5–6 mm
Stick Welding
- Electrode size: 1.6–4.0 mm
Generator Requirements
When operating from a generator, ensure it supplies clean, stable power with a Total Harmonic Distortion (THD) of 5% or less.
Recommended minimum generator capacity:
- 15.5 kVA peak output
Use of generators exceeding 5% THD or with insufficient output may damage the machine and void the warranty.
Always use correctly rated power cables and avoid undersized extension leads.
Power plug not included. Installation should be completed by a qualified electrician using the appropriate connector for the local three-phase supply.
