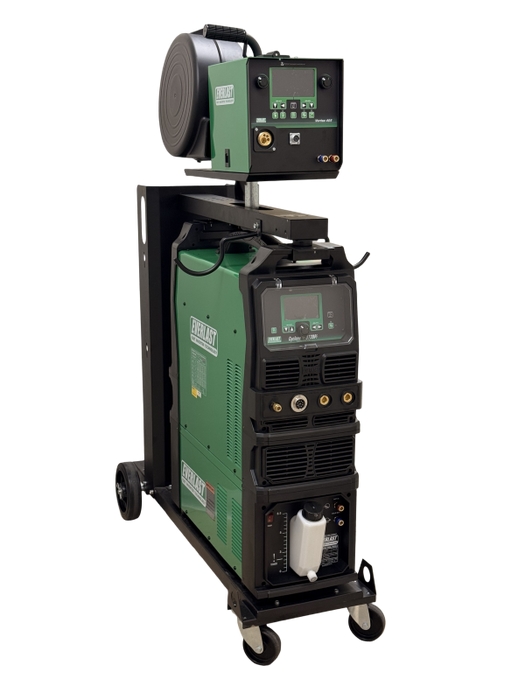

Everlast Cyclone 373DPi Single & Double Pulse MIG Welder

The Everlast Cyclone 373DPi is the latest generation Single & Double Pulse MIG welder, building on the proven success of the Power i-MIG 353DPi with increased output, improved performance, and an intuitive digital interface.

Designed for professional fabrication, production welding and aluminium work, the Cyclone 373DPi combines advanced pulse technology with fully synergic controls to deliver exceptional weld quality on steel, stainless steel, aluminium and silicon bronze.

The machine features a separate wire feeder with a large colour LCD display, allowing complete control of all MIG functions directly from the feeder while the main power source houses the water cooler and trolley as one complete package.

Key Features

• Digital IGBT inverter technology

• Single Pulse & Double Pulse (Pulse-on-Pulse) MIG

• Standard MIG & Gasless Flux Cored welding

• Fully synergic PowerSet™ Generation 2 mode

• DC Lift TIG capability (optional gas valve TIG torch required)

• Advanced Stick welding including E6010 electrode capability

• Heavy-duty 4-roll wire drive system

• Separate digital wire feeder

• Water-cooled 510 Series MIG torch

• Built-in water cooler

• Industrial trolley included

• Adjustable inductance (MIG)

• Adjustable Arc Force (Stick)

• Save and name up to 30 welding programs

• Push-Pull gun compatible for aluminium welding

• Colour LCD displays on both power source and wire feeder

• Easy-to-use menu system with all welding settings on one screen

• Extremely low spatter arc performance

Weld Materials

Suitable for welding:

• Mild Steel

• Stainless Steel

• Aluminium

• Silicon Bronze

• Gas Shielded MIG

• Gasless Flux Cored Wire

Aluminium Welding

The Cyclone 373DPi is supplied ready for aluminium welding with:

• U-Groove drive rolls

• PTFE liner

For standard aluminium work the supplied MIG torch performs exceptionally well.

For longer torch lengths or production aluminium welding, Everlast recommends:

• Parker SG360A Push-Pull Gun

• Parker DSP360 Push-Pull Gun

Specifications

Input Power

• 480V Three Phase

Welding Processes

• MIG

• Single Pulse MIG

• Double Pulse MIG

• Gasless Flux Core

• DC Lift TIG

• DC Stick (MMA)

Output Capacity

Maximum MIG Output

• 375 Amps

Maximum TIG Output

• 350 Amps

Maximum Stick Output

• 350 Amps

Duty Cycle

MIG

• 370A @ 32.5V

• 60% Duty Cycle @ 40°C

TIG

• 350A @ 24V

• 60% Duty Cycle @ 40°C

Stick

• 350A @ 34V

• 60% Duty Cycle @ 40°C

Input Current

240V Single Phase

• Maximum Input: 62.5A

• Rated Input: 49A

480V Three Phase

• Maximum Input: 21.6A

• Rated Input: 18A

Output Range

MIG

• 35–370A

• 15.75–32.5V

TIG

• 10–350A

• 10.4–24V

Stick

• 10–350A

• 20.4–34V

Wire Feeder

• Heavy Duty 4 Roll Drive System

• Separate Digital Wire Feeder

• Wire Feed Speed: up to 17.8 metres/minute

• Accepts wire spools up to 300mm diameter (20kg)

Memory

• Save up to 30 welding programs

Torch

• Water-Cooled 510 Series MIG Torch

• Euro Connector

Welding Capacity

Steel & Stainless Steel

• Single Pass: up to approximately 11mm

• Multi-Pass: over 19mm

• Pulse welding on material as thin as approximately 0.5mm

Aluminium

• Single Pass: up to approximately 10mm

• Multi-Pass: over 19mm

• Pulse welding from approximately 0.6mm

MIG Brazing

• Suitable from approximately 0.6mm sheet

• Practical brazing thickness up to 5–6mm

Stick Welding

• Electrode Size:

  • Minimum: 1.6mm

  • Maximum: 4.0mm

Standard Equipment Included

• Water-Cooled 510 Series MIG Torch (4.5m cable)

• Water Cooler

• Industrial Welding Trolley

• Earth Clamp with 3m cable and 35 DINSE connector

• Electrode Holder with 3m cable and 35 DINSE connector

• Argon/CO₂ Regulator & Flowmeter with Gas Hose

• Double U-Groove Drive Rolls 1.2–1.6mm (installed)

• Spare Double U-Groove Drive Rolls 0.8–0.9mm

• Spare 1.2mm Aluminium Contact Tips

• PTFE Aluminium Wire Liner

Perfect For

• Fabrication Workshops

• Aluminium Specialists

• Automotive Manufacturing

• Motorsport Fabrication

• Stainless Steel Fabrication

• Heavy Engineering

• Production Welding

• Industrial Maintenance

The Everlast Cyclone 373DPi is a true industrial-grade pulse MIG package, delivering outstanding arc performance, premium digital controls and the versatility to handle everything from thin sheet metal to heavy structural fabrication.
