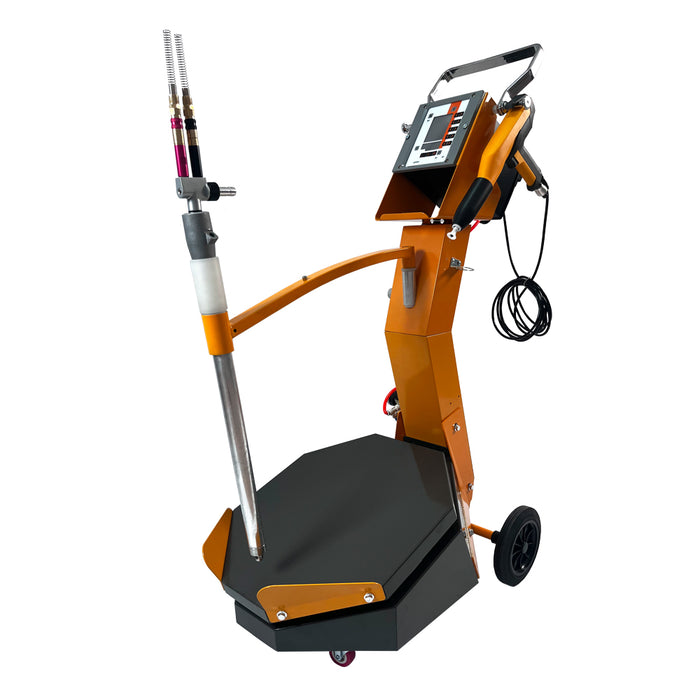

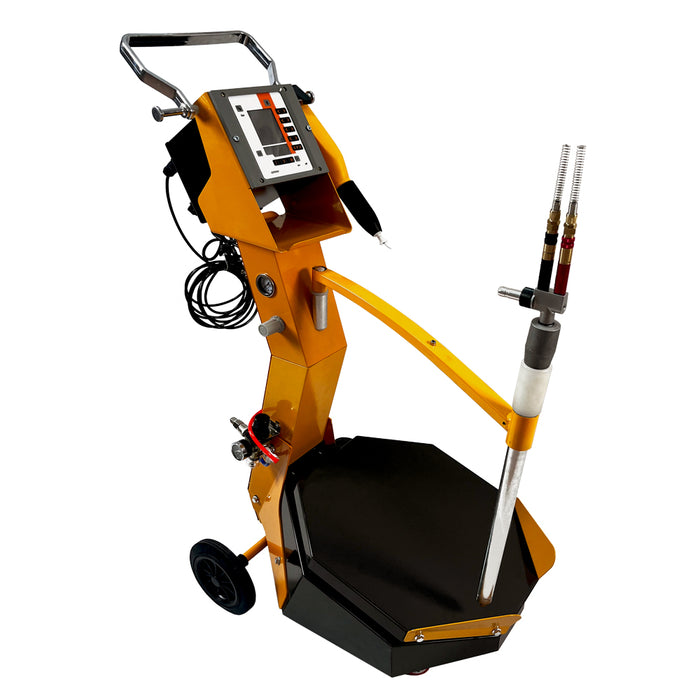

Digital Powder Coating Gun System

Digital Powder Coating Gun System

This digital powder coating gun system is a reliable and cost-effective solution for workshops, fabricators, and small production environments.

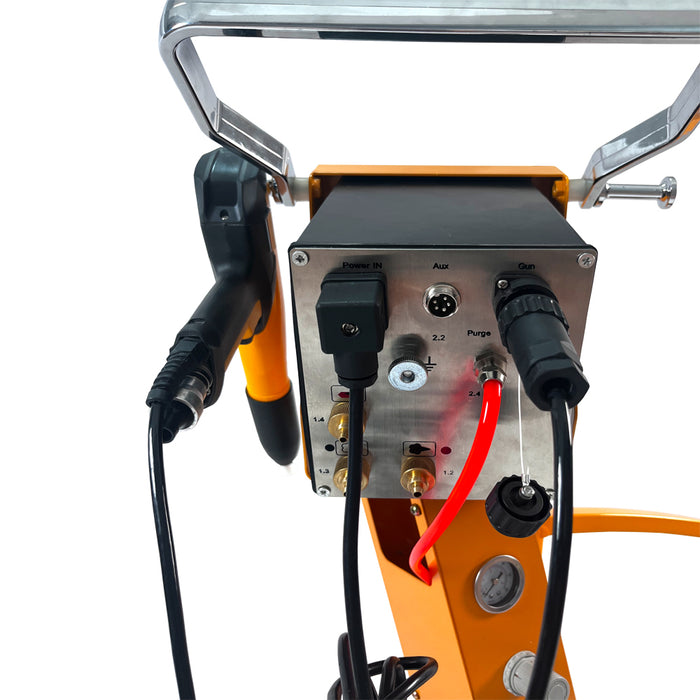

It features a digital controller with a clear LCD screen, allowing precise adjustment of key spraying parameters including voltage, spray current, powder output, and dosing air. This makes it easy to achieve consistent coverage, strong edge penetration, and repeatable coating results across a wide range of parts.

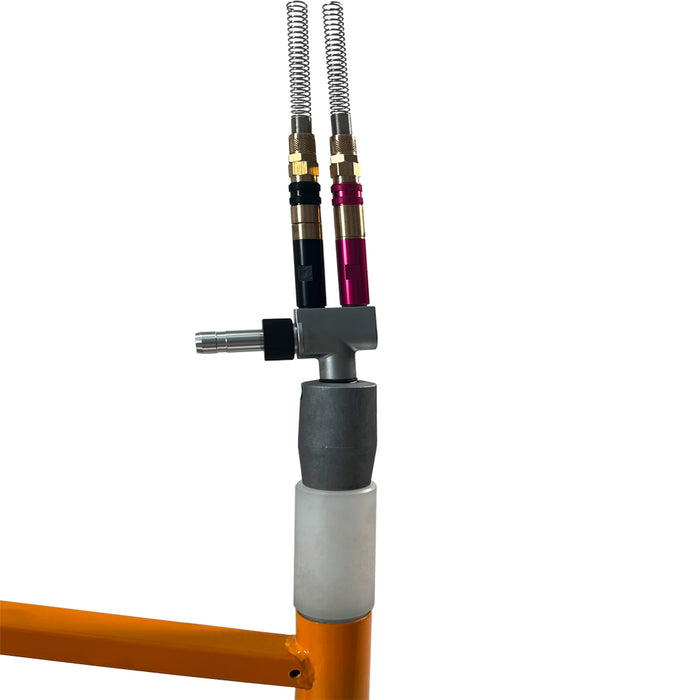

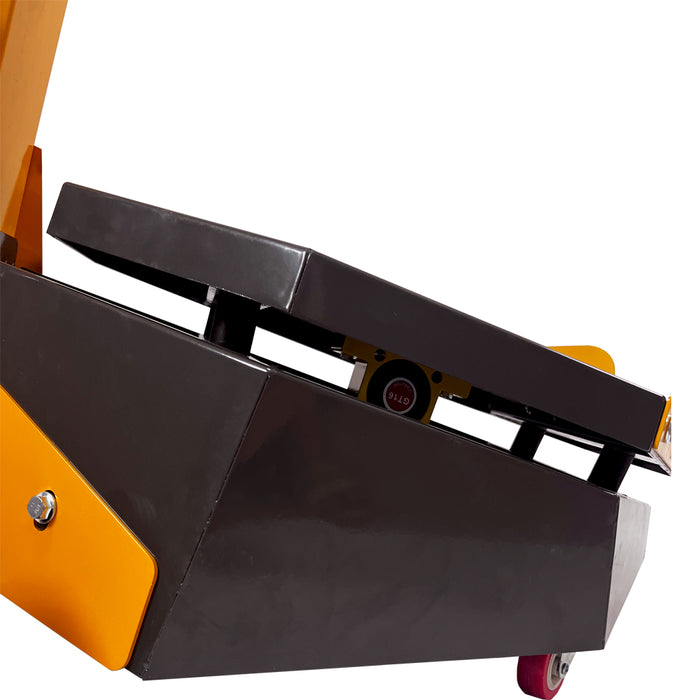

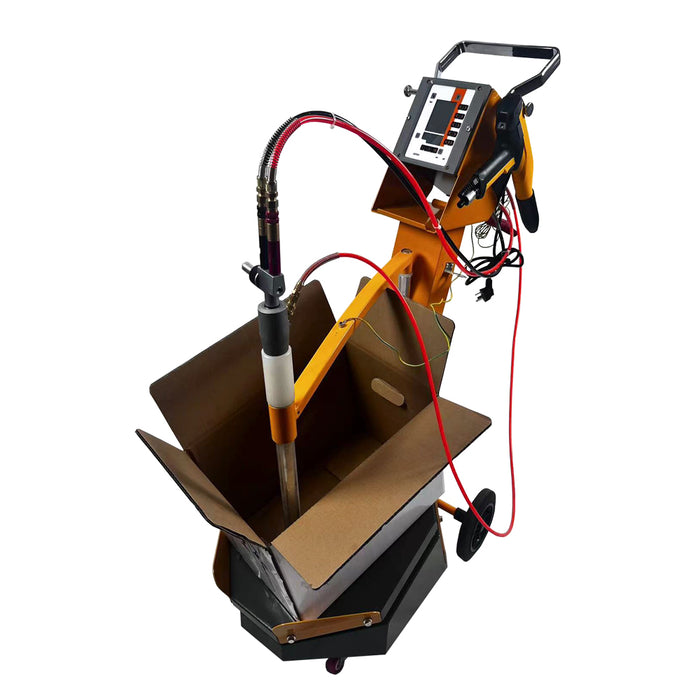

The system uses a suction-fed powder delivery setup with the original powder box mounted on an integrated vibration table. This ensures consistent powder flow and makes the unit well suited to multi-colour work, with quick and easy colour changes. Optional small powder hoppers are available to further speed up colour swaps and reduce waste.

Pre-set programs are included for common applications such as flat parts, profiles, and re-coating, with the ability to save custom settings. This makes the system suitable for both beginners and experienced powder coaters looking for a practical, easy-to-use setup.

A solid workshop powder coating solution designed to deliver dependable performance without the premium price tag.

Technical Specifications

• Model: DY-Z01

• Power: 240v

• Frequency: 50–60Hz

• Pulse Frequency: 15–20 pulses/sec

• Maximum Output Current: 150 μA

• Output Voltage: 100kV

• Operating Temperature: -10°C to 45°C

We always try hold stock but sometimes they need to be ordered in and can take a few weeks to air freight in.

Please email us if you have any questions sales@fabsupply.com
