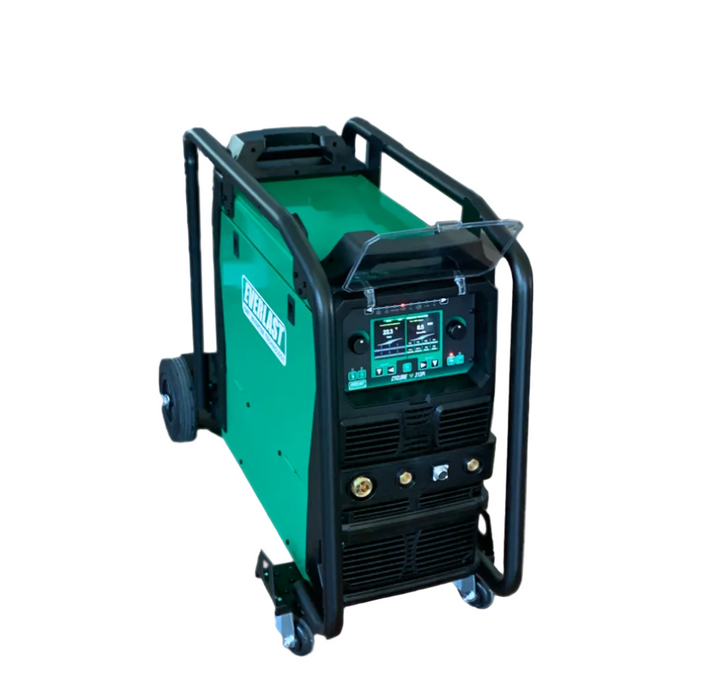

Everlast Cyclone 313Pi Pulse MIG Welder | 3 Phase
The Everlast Cyclone 313Pi is a professional-grade pulse MIG welding machine built for fabricators wanting greater control, cleaner weld quality, and advanced welding performance across multiple materials.
Designed for workshop and fabrication environments, the Cyclone 313Pi combines advanced pulse MIG technology with intelligent synergic controls to improve weld consistency while making setup faster and easier. Pulse MIG technology reduces spatter, improves weld appearance, and offers better heat control when welding thinner materials and aluminium.
The Cyclone 313Pi supports:
• Pulse MIG welding
• Standard MIG welding
• DC TIG welding
• DC Stick welding
Making it a versatile machine for fabrication shops requiring flexibility across multiple applications.
Synergic controls automatically help balance welding parameters, improving ease of use while maintaining professional weld quality.
- All digital DC CC/CV Multi-Process inverter design offers the perfect welder for nearly every task.
- 5.1 TFT HD Color LCD screen
- Intuitive setup
- Short Circuit, Spray Arc operation
- Synergic Single Pulse MIG operation
- Flux-Cored (Gasless or Gas-Shielded) operation
- E6010 Operation for root pass welding
- PowerSet mode for easy setup and use even with Pulse MIG function
- Full manual mode with complete control of settings
- Commercial design makes it perfect for production shops and general fabrication
- 8" and 12" Diameter wire spool capacity provides a good compromise for long duration welding and portability.
- Synergic MIG operation or Standard MIG operation.
- Easy to use, operator friendly panel to select features.
- Adjustable MIG Wave Form control manages slope/ inductance and fine tunes arc characteristics.
- Adjustable Arc Force Control allows the user to dial in desired Stick welding performance..
- Adjustable Burn back control keeps wire energized after feeding stops to burn back the wire to a perfect length without needing to trim wire for restarts.
- Spool gun and Push Pull Capable for MIG
- Exclusive 30 channel memory function allows favorite settings to be stored for quick setup.
- 2T/4T torch trigger/latch function offers stepped control welding with MIG.
- Adjustable Pre and Post flow for d MIG operation improves over all weld quality by reducing porosity during start/stops.

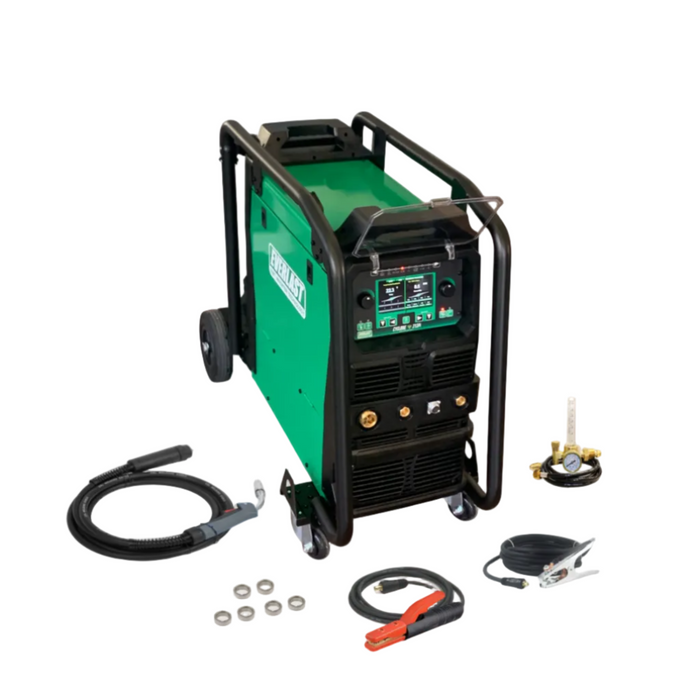

- 36 series MIG Gun with 10 ft. cable and Euro style quick connector
- Stick Electrode Holder with 10 ft. cable and 35 Dinse connector
- Ground Clamp with 10 ft. cable and 35 Dinse connector
- Argon Regulator with Hose
- Spare M8 Contact Tip
- Yellow Steel Liner .045"-.062" 10ft. installed
- Red Steel Liner .035"-.045" 10 ft. (extra)
- Drive Roll V Groove .035"-.045" (Double) installed
- Spare Drive Roll V Groove .023"-.030" (Double)
- Spare Drive Roll V Groove .045"-.062" (Double)
- Spare Drive Roll Flux Core .045"-.062" (Double)
Specifications:
- Type: Digital/Micro-controlled IGBT Inverter
- Output /Process Type: MIG, Stick
- Voltage/phase: 3 PHASE
- Max Rated MIG Amps: 315A
- Max Rated Stick Amps: 220A
- MIG Amps/Volts @ Rated Duty Cycle: 315A/29.8V @ 35% Duty Cycle (40°C/104°F)
- Stick Amps/Volts @ Rated Duty Cycle: 250A/30V @ 35% Duty Cycle (40°C/104°F)
- Max Inrush ( I1MAX ) Amps: 64A
- Maximum Rated (I1EFF ) Input Amps: 38A
- OCV: 84V
- MIG Output Range: 30-315A/15.5-29.8V
- Stick Output Range: 10-250A/20.4-30V
- Variable MIG Inductance/Stick Arc Force Control: Yes
- Spool Gun Capable: Yes
- Pulse: Single
- Pulse Frequency: MIG: Synergically Controlled
- Pulse Volts: MIG: Synergically Controlled Pulse Voltage
- Standard Drive Roll wire size: .035”-.045”
- Separate wire feeder: No, self contained
- Number of Drive rollers: 4
- Max Wire Feed Speed: 600IPM
- Max Wire Roll Diameter: 12” (full size up to 44lb)
- Memory: Yes
- Flux Core: Yes, Optional
- Air Carbon Arc: No
- 2T/4T /Torch latch/Trigger: Yes
Minimum/Maximum:
- Steel/Stainless: 24-22 Gauge to 1/2" Single Pass
- Steel/Stainless up to 1+" multi-pass.
- Aluminum: 14 gauge to 3/8" Single Pass
- Aluminum up to 1" or greater Multi-Pass or greater
Notes:
Never purchase a welder for the Minimum or Maximum settings for daily use. Always pick a number somewhere between the two for your daily average thicknesses. Minimum and Maximum settings are subject to operator skill, knowledge, wire diameter, joint prep, joint type, weld gas mix and welding position. Maximum ratings may not concur with welding codes. The minimum and maximum capacity ratings may require an optional liner and/or an additional MIG Gun, and drive rolls to achieve. Steel/Stainless maximum figures are based off of a Spray Transfer, in flat position with a suitable spray-capable gas mixture
This unit may require the purchase of additional drive rolls, MIG Guns, and MIG Gun liners to weld with wire smaller than .045". Additionally, this MIG Gun is designed for primarily axial spray (spray arc) welding. For best results with smaller liners, purchase a 24 series MIG Gun and Blue Liner for .035" diameter wire. A Teflon Liner is required for aluminum along with U Groove Drive Rolls.
For .023" and .030" exclusive use, 15 series MIG Gun should be purchased.
Dedicated or extended use of gasless flux-cored operation will require a flux-cored gun, available from aftermarket sources. Contact Everlast Welders for recommendations if this is planned.
