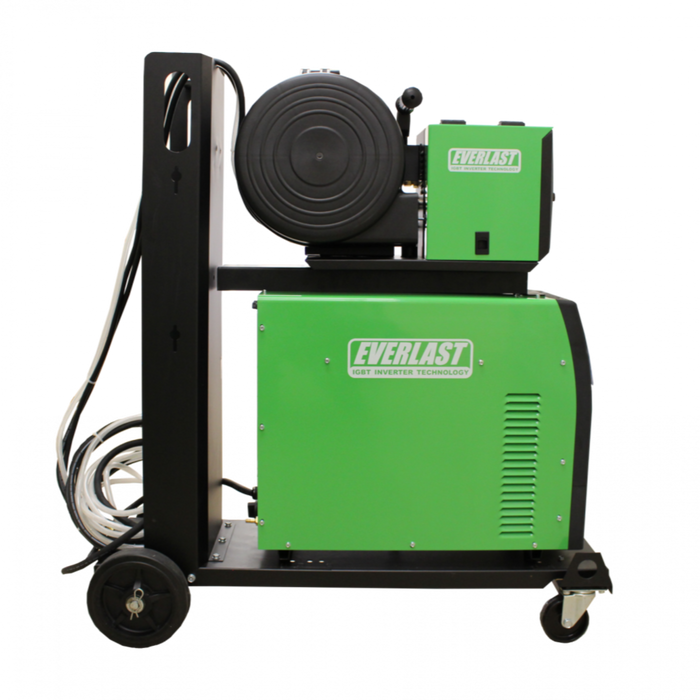

Everlast PowerMTS 400 Multi-Process Welder
The Everlast PowerMTS 400 is a robust CC/CV power source designed for professional MIG, TIG, and Stick welding applications. Unlike integrated inverter-wire feeder systems, the PowerMTS 400 features a separate power supply and wire feeder, offering enhanced portability and flexibility on large job sites.
Ideal for industrial, commercial, and smaller welding shops, this dual voltage, dual phase welder operates efficiently on single-phase 240V or three-phase 240V power (with reduced output on single phase). Delivering up to 400 amps at a 60% duty cycle, the PowerMTS 400 provides reliable, continuous welding performance.
Designed for heavy-duty use, this unit includes advanced hot start and arc force control settings, enabling clean root passes with E6010 or 5P+ electrodes without sticking or arc interruptions. The PowerMTS 400 supports multiple welding processes with dedicated modes for scratch start TIG, flux-core, MIG, Stick welding, and even Air Carbon Arc gouging and cutting.
Compared to other CC/CV power sources like the Miller XMT® and Lincoln Invertec®, the PowerMTS 400 offers superior features and performance at a more competitive price.
This all-in-one package includes a wire feeder, clamps, cables, torches, and a convenient welding cart, making it ready for immediate use on any job site or in any welding shop. Whether you need full multi-process capability or just the MIG function, the PowerMTS 400 stands out as a powerful, portable, and versatile welding solution.
-
Heavy-duty CC/CV inverter power source: Reduces the need for multiple machines on job sites, handling large industrial welding tasks efficiently.
-
Competitive performance: Matches and often exceeds Miller XMT® and Lincoln Invertec® welders in features and value.
-
Conformal coated electronics: Protects sensitive components against moisture and dirt for reliable operation in harsh environments.
-
High duty cycle at max amps: Ensures consistent, long-duration welding to boost productivity.
-
Adjustable MIG arc force and inductance control: Provides precise arc management for superior weld quality.
-
2T/4T torch trigger and latch function: Allows stepped control with crater fill amps and volts for flawless weld finishes.
-
FCS 201 wire feeder included: Operates up to 75 feet from the power source for enhanced portability on large jobs.
-
On-the-fly wire feeder adjustments: Voltage and wire feed speed can be controlled directly from the feeder without returning to the main unit.
-
Heavy-duty 4-roll drive system: Delivers smooth, reliable feeding of large diameter wire for demanding welding tasks.
-
Hot Start and strong arc force control: Makes burning tough pipeline rods such as 6010 and 5P easy and efficient.
-
Scratch start DC TIG welding: Provides a smooth, precise arc for detailed TIG applications.
-
Optimized carbon arc gouging setting: Designed for efficient gouging, best used with three-phase power.
-
Crater fill amps and volts: Enhances MIG weld quality and prevents cracking at the end of welds.
-
Dual voltage and dual phase input: Offers flexibility to operate on single-phase 240V or three-phase 240V power sources.
-
Complete welding package: Includes wire feeder, clamps, cables, torches, and a convenient welding cart for immediate job readiness.
What's Included:
- 26V series (Gas Valve) Air-Cooled TIG Torch with 12.5 ft. cables and 35 DINSE connector
- 36 series MIG Gun with 10 ft. cable and Euro Quick Connect fitting
- Stick Electrode Holder with 10 ft. cable and 35 DINSE connector
- Ground Clamp with 10ft. cable and 35 DINSE connector
- Welding Cart that integrates both wire feeder and power source with room for a gas cylinder
- Everlast FCS-203 Air-Cooled Wire Feeder with .045"-.062" (1.2mm-1.6mm) V Groove (Hard wire) Drive Rolls
- Wire Feeder connection cables up to 20 ft.
- Additional set of .030"-.035" (0.8mm-0.9mm) V Groove (Hard wire) Drive Rolls
Specifications:
-
Type: Analog IGBT Inverter
-
Output / Process Type: MIG, DC TIG, DC Stick
-
Voltage/Phase: 220/240 V 1 PHASE, 480 V 3 PHASE
-
Max Rated MIG Amps:
-
315A @ 240V 1 phase
-
400A @ 480V 3 phase
-
-
Max Rated TIG Amps:
-
300A @ 240V 1 phase
-
400A @ 480V 3 phase
-
-
Max Rated Stick Amps:
-
300A @ 240V 1 phase
-
400A @ 480V 3 phase
-
-
MIG Amps/Volts @ Rated Duty Cycle (40ºC):
-
240V (1 phase): 315A/29.8V @ 60%, 250A/26.6V @ 100%
-
480V (3 phase): 400A/34V @ 60%, 315A/30V @ 100%
-
-
TIG Output Amps/Volts @ Rated Duty Cycle (40ºC):
-
240V (1 phase): 300A/22V @ 60%, 250A/20V @ 100%
-
480V (3 phase): 400A/26V @ 60%, 315A/22.6V @ 100%
-
-
Stick Amps/Volts @ Rated Duty Cycle (40ºC):
-
240V (1 phase): 300A/32V @ 60%, 250A/30V @ 100%
-
480V (3 phase): 400A/36V @ 60%, 310A/32.4V @ 60%
-
-
Max Inrush (I1MAX) Amps:
-
60A @ 240V (1 phase)
-
24A @ 480V (3 phase)
-
-
Maximum Rated (I1EFF) Input Amps:
-
46A @ 240V (1 phase)
-
20A @ 480V (3 phase)
-
-
Open Circuit Voltage (OCV):
-
MIG: 70V
-
TIG: 70V
-
Stick: 70V
-
-
MIG Output Range:
-
60-315A / 17-29.8V @ 240V (1 phase)
-
60-400A / 17-34V @ 480V (3 phase)
-
-
TIG Output Range (Scratch Start Only):
-
20-250A / 10.8-22V @ 240V (1 phase)
-
30-400A / 11.2-26V @ 480V (3 phase)
-
-
Stick Output Range:
-
20-250A / 20.8-32V @ 240V (1 phase)
-
30-400A / 21.2-34V @ 480V (3 phase)
-
-
Variable MIG Inductance / Stick Arc Force Control: Yes
-
Spool Gun Capable: Yes
-
Pulse: No
-
Standard Drive Roll Wire Size: .040” and greater
-
Separate Wire Feeder: Yes
-
Number of Drive Rollers: 4
-
Max Wire Feed Speed: 750 ipm
-
Max Wire Roll Diameter: 12” (full size up to 44 lb)
-
Memory: No
-
Foot Pedal: None / Not Applicable
-
Flux Core: Yes, Optional
-
Air Carbon Arc: Yes
-
2T/4T Torch Latch / Trigger: Yes
-
Other Features:
-
Crater Fill Volts for MIG
-
Crater Fill Amps for MIG
-
Gas purge feature for MIG
-
DINSE 35-70 connectors
-
Air Carbon Arc setting
-
Volt and Amp meter on main unit
-
Remote wire feeder capability
-
