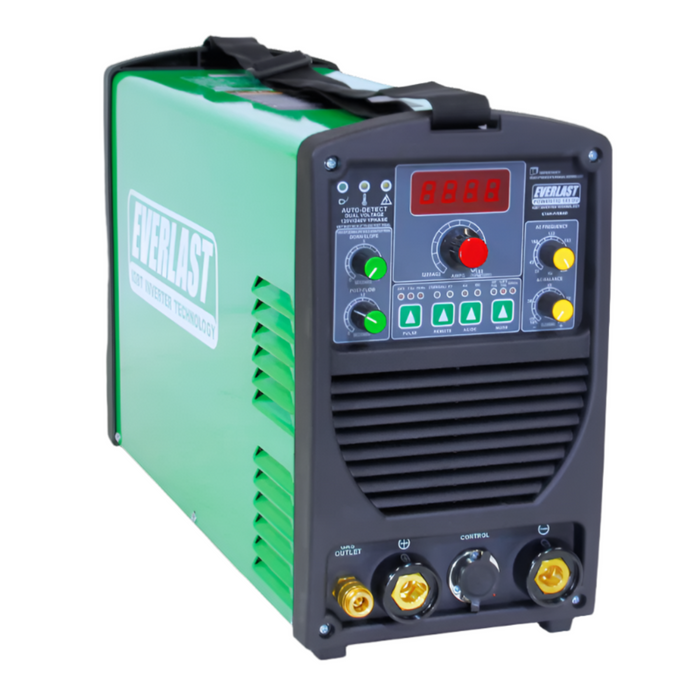

Everlast PowerTIG 185DV Digital AC/DC TIG & Stick Welder – Dual Voltage Inverter
Whether you’re working on light fabrication, repairs, automotive projects, or mobile welding jobs, the Everlast PowerTIG 185DV is your ideal “toolbox welder.” This dependable and portable AC/DC TIG and stick welder easily fits in your truck, ready to perform wherever the job takes you. Its intuitive, manual controls are perfect for welders who prefer tactile adjustment over digital touchscreens.
Equipped with dual voltage capability (120V/240V), the PowerTIG 185DV offers true go-anywhere flexibility, allowing you to weld virtually anywhere a standard power outlet is available. Compact yet rugged, this powerful welder delivers professional-grade performance in garages, workshops, and on-site environments.
Powered by a digitally controlled IGBT inverter, the 185DV produces a smooth, stable arc that’s as clean and consistent as any welder in its class. It excels in both AC/DC TIG welding and stick welding, providing maximum versatility for a wide range of metals including aluminium, stainless steel, and mild steel.
-
Compact digital IGBT inverter technology for energy-efficient, precise AC/DC TIG welding performance.
-
Smooth, stable arc in AC and DC modes ensures consistent weld quality on aluminium, stainless steel, mild steel, and other metals.
-
Pre-set pulse TIG mode (1 or 50 Hz) simplifies pulse welding for improved control on thin and delicate materials.
-
5 Amp DC and 20 Amp AC start current delivers reliable arc ignition for TIG and stick welding applications.
-
Automatic gas pre-flow and adjustable post-flow controls protect welds from contamination and ensure clean finishes.
-
Adjustable down-slope control prevents crater cracks by smoothly reducing welding current at weld end.
-
Advanced square wave AC output optimizes arc control and cleaning action for aluminium TIG welding.
-
2T/4T torch switch operation offers versatile torch trigger control for comfortable, precise welding.
-
HV or Lift TIG arc start system provides reliable, maintenance-free high-voltage arc initiation.
-
150 Amp stick welding function expands welding versatility for thicker metal projects.
-
Adjustable AC frequency (20–250 Hz) and AC balance control (10–90%) allow fine tuning of arc characteristics for aluminium and other metals.
-
Includes NOVA SuperFlex TIG torch and NOVA foot pedal for professional-grade welding control right out of the box.
-
HV Start technology replaces older point-gap systems with advanced electronic arc start, reducing maintenance and improving reliability.

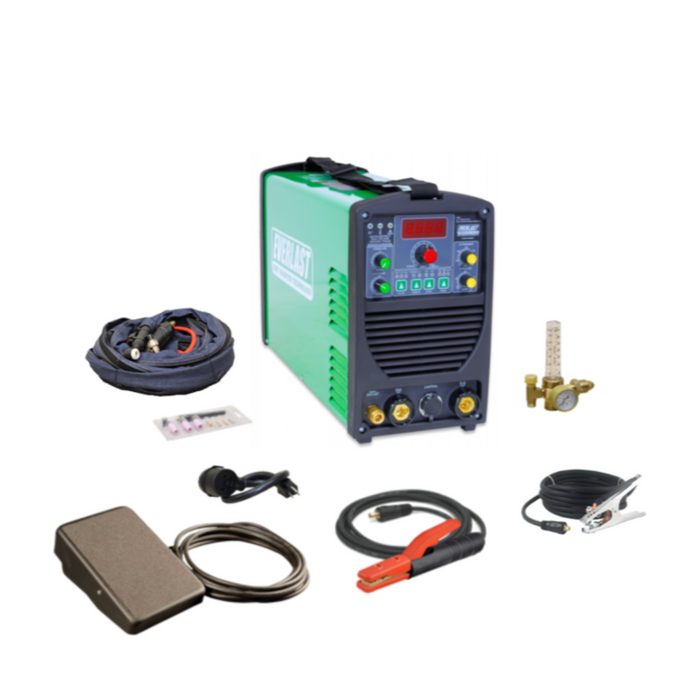

- NOVA 17 series Rigid Neck Air-Cooled TIG Torch with 12.5 ft. ultra-flexible cables and 35 DINSE connector
- Torch Switch with 12.5 ft. cable and 7 Pin female style plug for 2T/4T operation
- Stick Electrode Holder with 10 ft. cable and 35 DINSE connector
- Ground Clamp with 10 ft. cable and 35 DINSE connector
- RH-191 Argon Regulator with Hose
- 6 ft. Input Power Cable with 15 AMP PLUG.
- 240/120V Pigtail Adapter
- Starter Consumable Kit (tungsten not included)
- NOVA Pedal TIG 7 Pin
- IGBT Type: Individual IGBT
- Inverter Type: Digital/Micro-controlled
- Output Type: AC/DC TIG, DC Stick
- Voltage/phase: DUAL VOLTAGE 120/240 1 PHASE
- Max Rated TIG Amps: 120V: 125A , 240V: 185A
- Max Rated Stick Amps: 120V: 100A, 240V: 150A
- TIG Amps @ Rated Duty Cycle:
- 120V: 125A/15V @ 35% Duty Cycle/ 40º C, 100A/14V @ 60% Duty Cycle/40º C 80A/13.2V @ 100% Duty Cycle/ 40º C
- 240V: 185A/17.4V @ 35% Duty Cycle/ 40º C, 145A/15.8V @ 60% Duty Cycle/40ºC 110A/14.4V @ 100% Duty Cycle/ 40º C
- Stick Amps @ Rated Duty Cycle:
- 120V: 100A/24V @ 35% Duty Cycle/ 40º C, 80A/23.2V @ 60% Duty Cycle/ 40º C 60A/22.4V @ 100% Duty Cycle/ 40º C
- 240V: 150A/26V @ 35% Duty Cycle/ 40º C, 120A/24.8V @ 60% Duty Cycle/ 40º C 90A/23.6V @ 100% Duty Cycle/ 40º C
- Max Inrush ( I1MAX ) Amps: 120V: 34A, 240V: 29A
- Maximum Rated (I1EFF ) Input Amps: 120V: 21A, 240V: 17A
- OCV: TIG: 74V, Stick: 74V
- TIG Output Range DC: 120V: 5A-125A 10.2V-15V 240V: 5A-185A/ 10.2V-17.4V
- TIG Output Range AC: 120V: 20-125A/10.8-15V 240V: 20-185A/10.8-17.4V
- Stick Ouput Range DC:
- DC:120V: 5A-100A/ 20.2V-24V, 240V: 5A-150A/20.2V-26V
- AC: 120V: 20A-100A/20.8V-24V, 240V: 20A-150A/20.8V-26V
- Stick Hot Start Amps: Auto regulated
- Stick Function: Auto Adaptive Arc Force Control
- Stick Hot Start Type: Auto Adaptive Hot Start
- 6010/Cellulose Capable: Limited to 6011
- Minimum Amp DC TIG Start: 5A
- Minimum Amp AC TIG Start: 20A
- TIG Start Type: Solid State HF and Lift Start
- HF and Lift: HV (Solid State HF Type, Lift Start with Remote
- Memory: No
- Start Amp Range: Fixed, Minimum
- End Amp Range: Fixed/minimum
- Upslope Time: Fixed, Minimum
- Down Slope Time: 0-10 Seconds
- Preflow time: Preset/Auto .3 Seconds
- Post Flow Time: 0-25 seconds
- TIG Pulse: Yes
- Standard DC Pulse Frequency: 1 or 50 Hz
- Standard AC Pulse Frequency: 1 or 50 Hz
- Pulse Time On (Duty Cycle): Fixed/Preset
- Pulse Amp Range: Fixed/Preset
- AC Frequency (Hz): 20-250Hz
- AC Balance Range: 10-90% of Positive
- AC Wave Forms: Advanced Square Wave
- Remote Control: 2T/4T
- Foot Pedal: Optional
- Weld steel to a maximum of 1/4" single pass (240V)
- Weld steel to a maximum of 3/16" single pass (120V)
- Weld steel to a maximum of 3/8" multi-pass(240V)
- Weld steel to a maximum of 5/16" multi-pass (120V)
- Weld aluminium to a maximum of 3/16" single pass (240V)
- Weld aluminium to a maximum of 1/8" single pass (120V)
- Weld aluminium to a maximum of 5/16" multi-pass (240V)
- Weld aluminium to a maximum of 3/16" multi-pass (120V)
- Weld to a minimum of .007" Steel (120V or 240V)
- Weld to a minimum of .025" Aluminum (120V or 240V)
- Stick weld with a 3/32" Electrode (depends on type and brand, may require a smaller electrode for some types, 120V)
- Stick weld with a 1/8" Electrode (depends on type and brand, 240V)
- This unit not rated for E6010 Stick use.
The max capability of all figures should not be the determining factor in your purchase. Duty Cycle and other factors can influence the practical limits of this machine.
