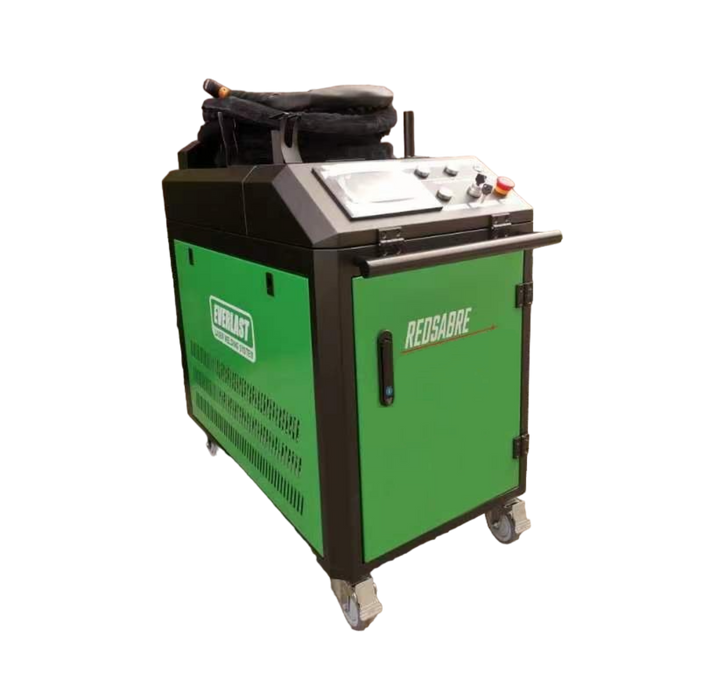

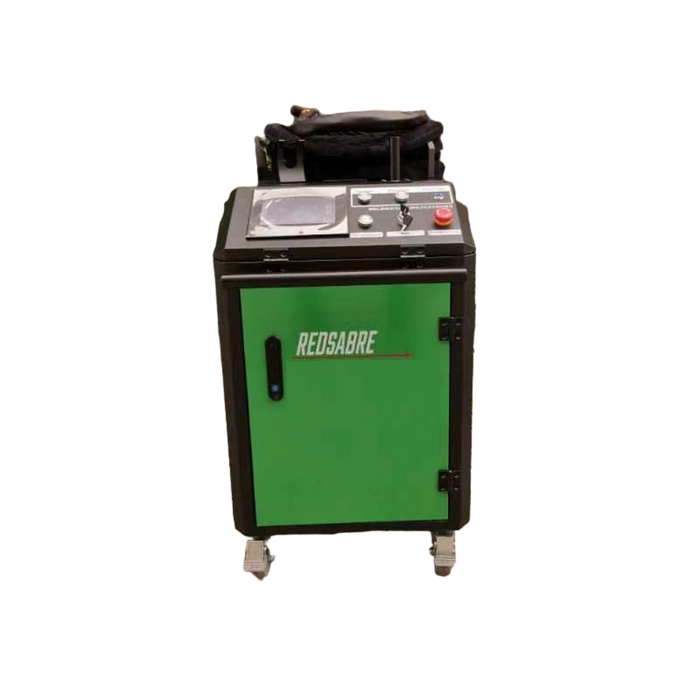

Everlast RedSabre 1500X Laser Welder, Cleaner & Cutter
See how the RedSabre 1500X compares with other NZ laser welders β
The Everlast RedSabre 1500X is a 4-in-1 handheld fibre laser that combines laser welding, cutting, cleaning and surface preparation (paint and rust removal) in one compact, industrial-grade machine. Its 1500W fibre laser welds mild steel, stainless, aluminium and copper with narrow, clean welds, good penetration, little spatter and minimal heat-affected zone and distortion.
The nozzles, lenses and accessories to switch between processes are included: select the process on the control system and connect the right shielding gas or compressed air. The ergonomic, balanced handheld gun reduces fatigue during long jobs. Designed for manual operation.
Features
- 1500W fibre laser, optical pump laser source, Class 4
- 220β240V single phase input, 20A rated
- Refrigeration-cooled system
- 4-in-1: laser welding, cutting, cleaning and surface preparation
- Integrated synchronised wire feeder, 0.8β1.6mm filler wire
- Autogenous (fusion) welding without filler wire
- Shielding gas: argon or nitrogen (Nβ); cutting gas: compressed air or nitrogen (Nβ)
- Recommended welding gas flow approx. 14 L/min
- Travel speeds up to 125mm/sec, depending on material thickness and settings
- Continuous 100% duty cycle
- Quick process selection on the control system
- Compact, portable design
Welding and Cutting Capacity
| Application | Capacity |
|---|---|
| Root gap, autogenous (no filler wire) | 1.0mm |
| Root gap, single wire feeder | 1.6mm |
| Root gap, dual wire feeder | 2.0mm |
| Single-side weld, mild steel | 6.0mm |
| Single-side weld, stainless steel | 6.0mm |
| Single-side weld, aluminium | 4.5mm |
| Single-side weld, copper | 3.0mm |
| Cutting, mild steel | 6.0mm |
| Cutting, aluminium | 5.0mm |
Actual welding and cutting performance varies with joint design, material condition, operator technique and process settings.
Specifications
- Laser type: continuous wave (CW) fibre laser
- Laser output: 1500W
- Input power: 220β240V single phase, 50/60Hz
- Rated input: 20A
- Cooling: refrigeration-cooled
- Wire size: 0.8β1.6mm
- Shielding gas: argon, nitrogen (Nβ)
- Cutting gas: compressed air, nitrogen (Nβ)
- Recommended gas flow: approx. 14 L/min
- Maximum travel speed: up to 125mm/sec

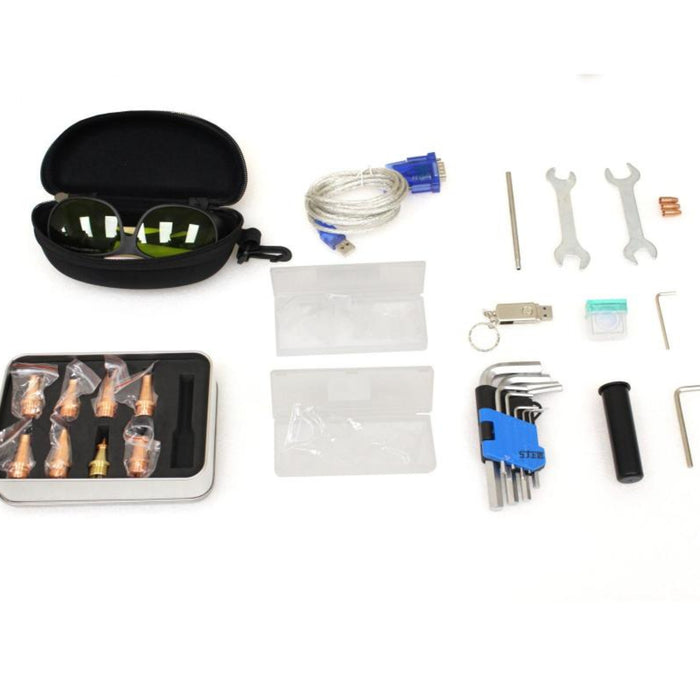

What's Included
- Synchronised wire feeder attachment

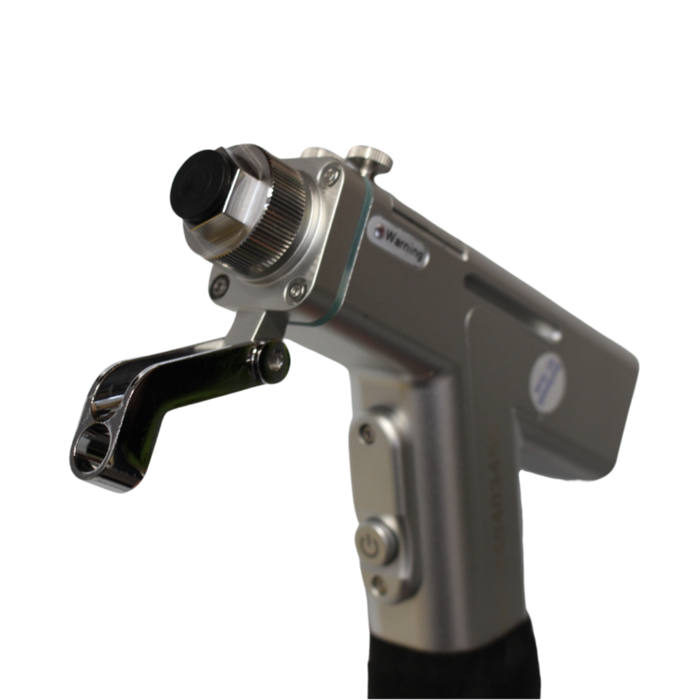

- Ergonomic handheld laser gun with 9m cable
- Starter consumables kit including welding, cleaning and cutting nozzles
- D18T2 protective lens kit (5 pieces)
- D20T4.5 F800 focus lens
- Data cable
- Laser safety glasses
- Operating key
Safety Information
The RedSabre 1500X is a Class 4 fibre laser, the highest laser hazard classification. Appropriate laser safety procedures must always be followed.
- Laser radiation is invisible and can cause serious eye and skin injury.
- Only use laser safety glasses specifically rated for the 1080nm wavelength used by this machine.
- Standard welding helmets and welding lenses must not be used as laser eye protection.
- Use suitable laser safety barriers or enclosed work areas to prevent accidental exposure.
- Operators should receive appropriate laser safety training before use.
For workplaces with employees, New Zealand health and safety legislation may require additional risk assessments, operator training and laser safety procedures. Consult your health and safety advisor and insurance provider to make sure your facility meets all requirements before commissioning the machine.
