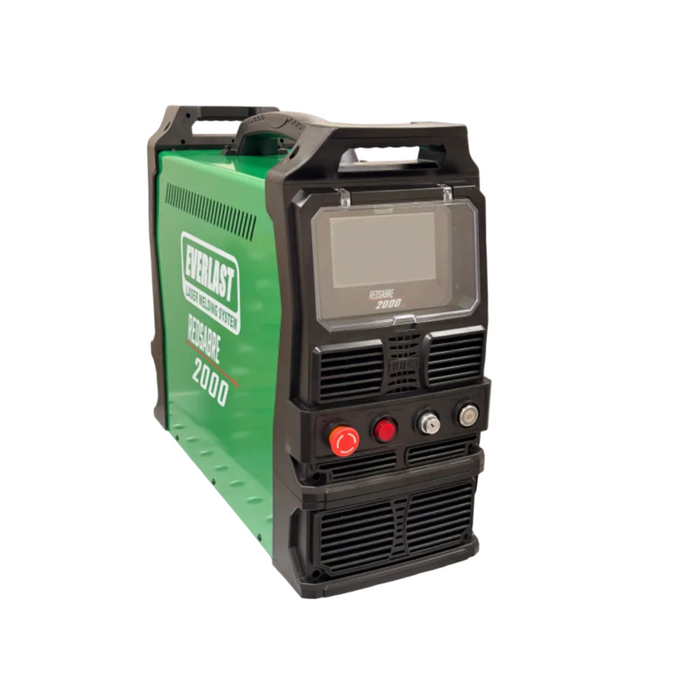

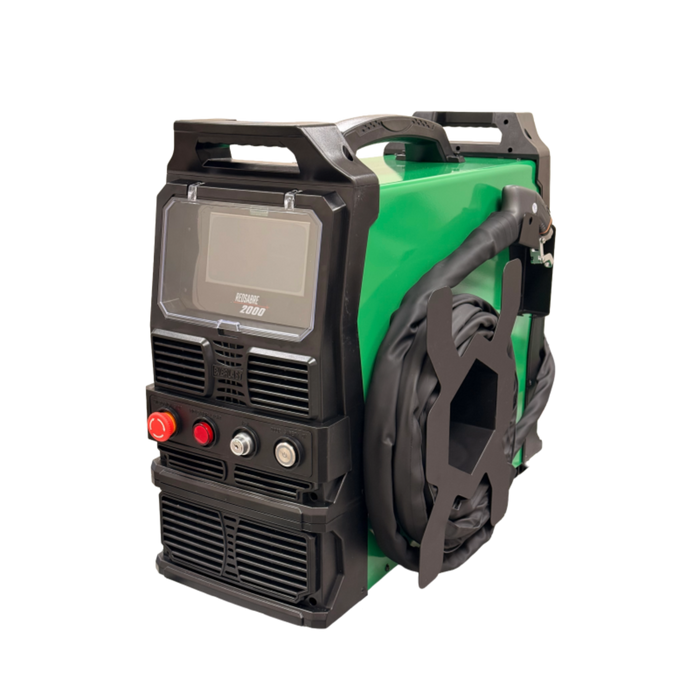

Everlast RedSabre 2000 Laser Welder, Cleaner & Cutter

See how the RedSabre 2000 compares with other NZ laser welders →

The Everlast RedSabre 2000 is a 2000W air-cooled fibre laser system for welding, cutting and removing rust, paint and surface contamination. It suits automotive, fabrication, engineering and industrial workshops that want high-speed laser welding in a compact, portable package.

Instead of a large external water cooling system, the RedSabre 2000 uses high-volume cooling fans and high-temperature diode technology, which keeps size, weight and maintenance down. A detachable colour touchscreen controller and synchronised wire feeder make setup simple. For manual operation only; not intended for automatic or CNC-controlled applications.

Features

• 2000W fibre laser output
• Advanced air-cooled laser design
• 230–240V single phase 50Hz input
• Class 4 laser system
• 4500W maximum input power
• Weld, cut and surface clean capability
• Detachable touchscreen colour LCD controller
• Synchronised wire feeder included
• Ergonomic handheld laser gun design
• Can perform autogenous welding (without filler wire)
• Argon or nitrogen shielding gas compatible
• Air or nitrogen cutting gas compatible
• Welding gas flow rate: approximately 14 L/min
• Travel speed up to approximately 127 mm/sec depending on material and settings
• Up to 100% duty cycle (6-hour continuous rating at maximum output)

Specifications

• Maximum single-side weld, mild steel / stainless steel: 6 mm
• Maximum single-side weld, aluminium: 4.5 mm
• Maximum single-side weld, copper: 3 mm
• Root gap fill without filler wire: 1.0 mm
• Root gap fill with single wire feeder: 1.6 mm
• Root gap fill with twin wire feeder: 2.0 mm
• Maximum cutting thickness, mild steel / stainless steel: 6 mm
• Maximum cutting thickness, aluminium: 5 mm

What's Included

• Synchronised wire feeder attachment
• SUP33T laser welding gun with 9 m cable
• Starter consumables kit including welding, cleaning and cutting nozzles
• D18T2 protective lens kit (5 piece)
• D20T4.5 F800 focus lens
• Data cable
• Laser safety goggles
• Key switch

Recommended Applications

• Automotive fabrication and restoration
• Stainless steel fabrication
• Aluminium fabrication
• General engineering
• Sheet metal manufacturing
• Agricultural repairs
• Industrial maintenance
• Rust and paint removal
• Pre-weld surface preparation

Laser Safety

This is a Class 4 laser system and requires appropriate safety controls. Laser radiation can cause serious injury even though the wavelength is outside visible light.

Operators must use:

• Laser-rated safety eyewear suitable for 1080 nm wavelength
• Appropriate laser shielding equipment
• Correct laser safety procedures
• Operator training before use

Standard welding helmets or cutting shades are not suitable for laser operation. Businesses using laser equipment may need additional workplace safety procedures, operator training and insurance approval depending on their operating environment. Always check the relevant workplace safety requirements before installation and operation.
