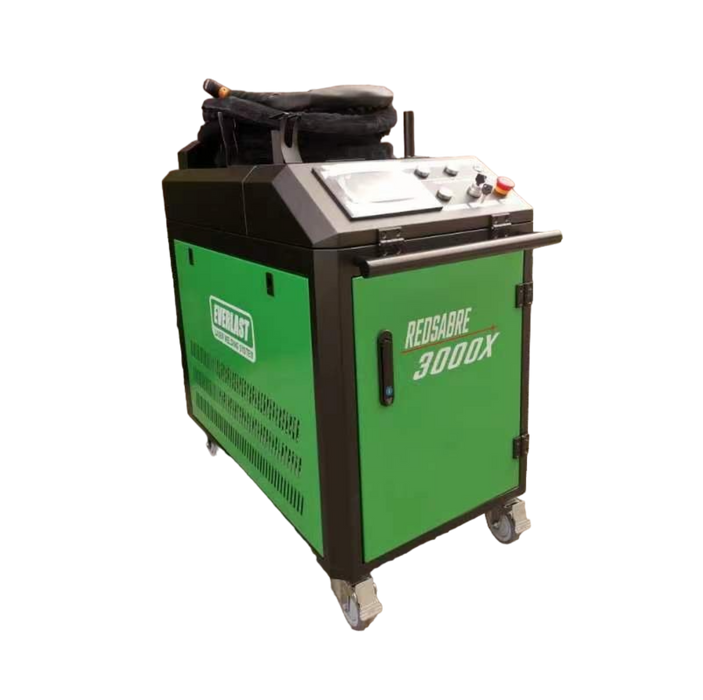

RedSabre 3000X Refrigeration-Cooled 3-in-1 Handheld Fibre Laser System

The RedSabre 3000X is a powerful 3-in-1 handheld fibre laser system designed for demanding fabrication, manufacturing and industrial applications. Combining laser welding, laser cutting and laser cleaning in one professional machine, it delivers exceptional productivity, deep penetration and outstanding versatility.

Advances in fibre laser technology have transformed high-powered laser systems, making them significantly more compact and practical than previous generations. Traditionally, 3000 W fibre lasers relied on large water-cooling systems that increased machine size and weight. The RedSabre 3000X features an advanced refrigeration-cooled design, providing efficient thermal management while reducing the overall footprint of the machine.

Designed for continuous industrial operation, the refrigeration cooling system allows extended production runs while maintaining stable output and consistent performance.

The RedSabre 3000X comes complete with a synchronised wire feeder, allowing high-quality laser welding with filler wire, while also supporting autogenous (fusion) welding where required. It also includes all the consumables, nozzles and optical components needed for welding, cutting and cleaning applications.

The ergonomic SUP23T handheld laser gun is lightweight, comfortable to use and designed to reduce operator fatigue during extended welding sessions.

Featuring an intuitive colour touchscreen interface, the RedSabre 3000X offers simple setup and fast process selection, making it an ideal solution for fabrication workshops, heavy engineering, manufacturing and industrial maintenance.

Designed for manual handheld operation only. Not intended for automated or robotic applications.

A 400 V three-phase power supply is required.

Features & Benefits

• 3000 W Fibre Laser
• 3-in-1 functionality:
  • Laser Welding
  • Laser Cutting
  • Laser Cleaning
• 400 V Three Phase
• 50/60 Hz input
• Maximum power consumption: 12 kW
• Class 4 industrial fibre laser
• Advanced refrigeration-cooled design
• Continuous-duty industrial performance
• Synchronised wire feeder included
• Ergonomic SUP23T handheld laser gun
• Integrated colour touchscreen display
• Suitable for autogenous (fusion) welding
• Shielding gas:
  • Argon
  • Nitrogen (N₂)
• Cutting gas:
  • Compressed air
  • Nitrogen (N₂)
• Recommended shielding gas flow: 14 L/min
• Travel speeds up to approximately 2.5 m/min, depending on material and settings
• Designed for extended continuous operation

Welding & Cutting Capacity

Welding

Mild Steel & Stainless Steel

• Maximum single-pass weld: 8 mm

Aluminium

• Maximum single-pass weld: 6.5 mm

Cutting

Mild Steel & Stainless Steel

• Maximum cutting thickness: 8 mm

Aluminium

• Maximum cutting thickness: 7 mm

Actual performance will vary depending on material type, joint preparation, shielding gas, welding position and operator technique.

Specifications

Laser Type

• Continuous Wave (CW) Fibre Laser

Laser Output

• 3000 W

Input Power

• 400 V
• Three Phase
• 50/60 Hz

Maximum Power Consumption

• 12 kW

Cooling

• Refrigeration-cooled

User Interface

• Integrated colour touchscreen display

Operating Mode

• Manual handheld operation

What's Included

• Synchronised single-wire feeder
• Power transformer
• SUP23T handheld laser gun with 9 m cable
• Starter consumables kit including welding, cleaning and cutting nozzles
• Protective lens kit (5 pieces)
• D20T4.5 F800 focus lens
• Data cable
• Laser safety glasses
• Operating key

Safety Information

The RedSabre 3000X is a Class 4 Fibre Laser, the highest laser hazard classification. Appropriate laser safety procedures must always be followed.

• Laser radiation is invisible and can cause serious eye and skin injury.
• Only use laser safety glasses specifically rated for the 1080 nm wavelength used by this machine.
• Standard welding helmets and conventional welding lenses must not be used as laser eye protection.
• Suitable laser safety barriers or enclosed work areas should be used to prevent accidental exposure.
• Operators should receive appropriate laser safety training before operating the machine.

For workplaces with employees, New Zealand health and safety legislation may require additional risk assessments, operator training and the implementation of laser safety procedures. Always ensure the laser system is installed and operated in accordance with applicable workplace safety requirements.

Consult your health and safety advisor and insurance provider to ensure your facility meets all applicable requirements before commissioning the machine.

Installation Requirements

• Requires a 400 V three-phase power supply.

• Installation should be completed by a qualified electrician in accordance with New Zealand electrical regulations.
