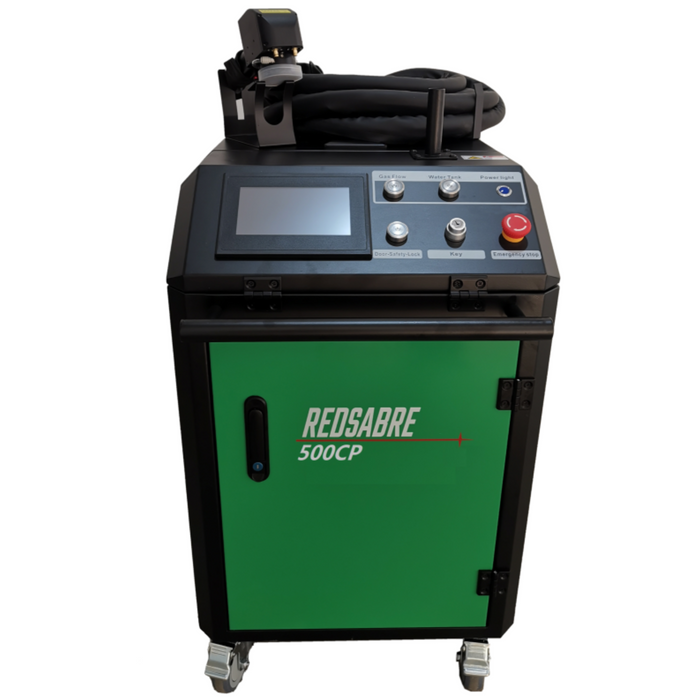

Everlast RedSabre 500CPX Water-Cooled Heavy-Duty Pulse Laser Cleaner

The Everlast RedSabre 500CPX is a 500W water-cooled pulsed fibre laser cleaner for fast, precise removal of rust, paint, mill scale, oxidation and surface contamination without the mess of abrasive blasting. Built for heavy industrial use, it handles thick deposits and thin materials alike, and the water-cooled design is suited to long cleaning sessions in demanding production and workshop environments.

The pulsed laser delivers energy in controlled bursts, so the cleaning can be fine-tuned from delicate surfaces through to heavy industrial work, with adjustable cleaning width and scan patterns. The touchscreen and wheeled steel cabinet make it easy to set up and move between jobs.

Prefer an air-cooled machine? See the RedSabre 500CP Air-Cooled Pulse Laser Cleaner.

Features

• Optical pump powered by JPT
• 500W output
• Pulsed fibre laser cleaning
• Water-cooled
• Up to 2500kHz pulse
• Multiple scan pattern shapes for better cleaning on shaped and irregular surfaces
• Steel case, rolling cabinet design
• Touchscreen controls
• Handheld scanning gun
• Removes rust, paint, mill scale and oxidation without damaging the base material
• No chemical paint strippers or blasting media, minimal waste
• Reduces manual grinding and sanding

Specifications

• Output: 500W pulsed fibre laser
• Cooling: Water-cooled
• Input: 240V
• Fibre cable: 5m (16 ft)
• Scan range: up to 100mm (3.9") wide
• Weight: approx. 136kg (300 lb)
• Warranty: 3 years

What's Included

• RedSabre 500CPX water-cooled pulsed fibre laser cleaner
• Handheld laser scanning gun with 5m fibre optic cable
• Integrated touchscreen control system

Recommended Applications

Automotive paint removal, commercial paint and prep, production and prototyping, shipyard cleaning and restoration, industrial refinishing, fabrication workshops, machinery restoration, weld preparation and general rust, paint and mill scale removal.

Safety Information

The RedSabre 500CPX is a Class 4 fibre laser, the highest laser hazard classification. Appropriate laser safety procedures must always be followed.

• Laser radiation is invisible and can cause serious eye and skin injury.
• Only use laser safety glasses specifically rated for the 1064–1080 nm wavelength specified for the machine.
• Standard welding helmets and conventional welding lenses must not be used as laser eye protection.
• Suitable laser safety barriers or enclosed work areas should be used to prevent accidental exposure.
• Operators should receive appropriate laser safety training before operating the machine.

For workplaces with employees, New Zealand health and safety legislation may require additional risk assessments, operator training and laser safety procedures. Consult your health and safety advisor and insurance provider to make sure your facility meets all applicable requirements before commissioning the machine.
