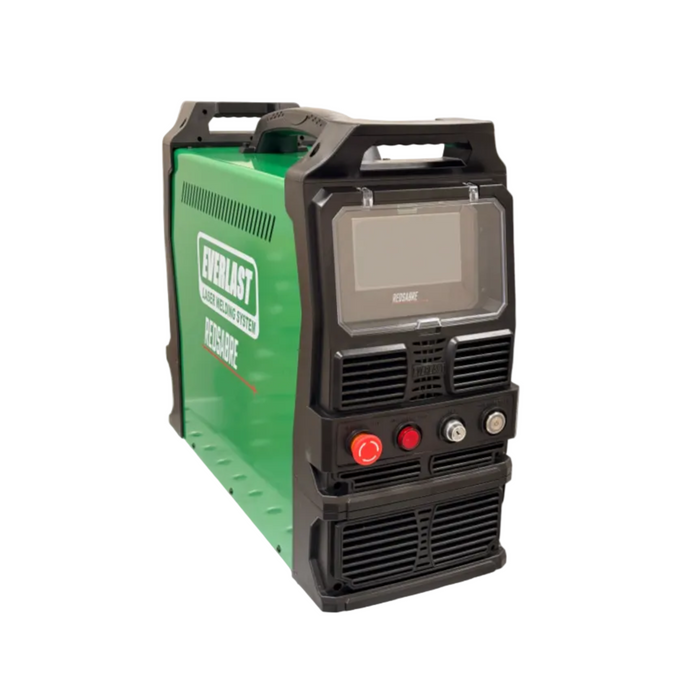

RedSabre 1300 Air-Cooled 3-in-1 Handheld Fibre Laser System

Compact laser power for welding, cutting and cleaning with speed and precision.

The RedSabre 1300 is a compact 3-in-1 handheld fibre laser system designed for professional workshops, fabrication businesses, automotive repair and light manufacturing. Combining laser welding, laser cutting and laser cleaning in one portable unit, it delivers exceptional versatility while maintaining a compact tabletop footprint.

Featuring an innovative air-cooled design, the RedSabre 1300 eliminates the need for a bulky external water chiller, making it significantly lighter and easier to transport than traditional water-cooled fibre laser systems. Advanced high-temperature diode technology and a high-efficiency cooling system provide reliable performance while reducing maintenance and overall machine size.

The ergonomic SUP33T handheld laser gun is designed for comfortable operation during extended use and incorporates advanced safety features for professional workshop environments.

Handheld fibre laser technology continues to transform fabrication by producing cleaner welds, faster travel speeds, lower heat input and significantly less distortion than conventional welding methods. In addition to welding, the RedSabre 1300 can also perform precision cutting and laser cleaning, reducing the need for multiple machines.

The machine features an integrated colour touchscreen control system for simple setup and operation, and now includes a wire feeder as standard for improved welding capability.

Designed for manual handheld operation only. Not intended for automated or robotic applications.

Features & Benefits

• 1300 W Fibre Laser
• 3-in-1 functionality:
  • Laser Welding
  • Laser Cutting
  • Laser Cleaning
• 220–240 V Single Phase
• 50/60 Hz input
• Maximum input current: 18 A
• Maximum power consumption: 4.5 kW
• Class 4 industrial fibre laser
• Air-cooled design
• Integrated wire feeder included
• Ergonomic SUP33T handheld laser gun
• Integrated colour touchscreen display
• Compact tabletop design
• Suitable for autogenous (fusion) welding
• Shielding gas:
  • Argon
  • Nitrogen (N₂)
• Cutting gas:
  • Compressed air
  • Nitrogen (N₂)
• Recommended shielding gas flow: 14 L/min
• Travel speeds up to approximately 2.5 m/min, depending on material, thickness and settings
• Continuous-duty design with excellent duty cycle for extended operation

Welding & Cutting Capacity

Welding

Mild Steel & Stainless Steel

• Maximum single-pass weld: 3.5 mm

Aluminium

• Maximum single-pass weld: 2.5 mm

Cutting

Mild Steel & Stainless Steel

• Maximum cut thickness: 4 mm

Aluminium

• Maximum cut thickness: 3 mm

Actual performance will vary depending on joint design, material type, surface condition, shielding gas and operator technique.

Specifications

Laser Type

• Continuous Wave (CW) Fibre Laser

Laser Output

• 1300 W

Input Power

• 220–240 V
• Single Phase
• 50/60 Hz

Maximum Input Current

• 18 A

Maximum Power Consumption

• 4.5 kW

Cooling

• Air-cooled

User Interface

• Integrated colour touchscreen display

Operating Mode

• Manual handheld operation

What's Included

• Ergonomic SUP33T handheld laser gun with 9 m cable
• Integrated wire feeder
• Starter consumables kit including welding, cleaning and cutting nozzles
• Spare protective lens kit (5 pieces)
• D20F50CT 50 mm collimation lens
• D20F150CT 150 mm focus lens (installed)
• Data cable
• Laser safety glasses
• Operating key

Safety Information

The RedSabre 1300 is a Class 4 Fibre Laser, the highest laser hazard classification. Appropriate laser safety procedures must always be followed.

• Laser radiation is invisible and can cause serious eye and skin injury.
• Only use laser safety glasses specifically rated for the 1080 nm wavelength used by this machine.
• Standard welding helmets and conventional welding lenses must not be used as laser eye protection.
• Suitable laser safety barriers or enclosed work areas should be used to prevent accidental exposure.
• Operators should receive appropriate laser safety training before operating the machine.

For workplaces with employees, New Zealand health and safety legislation may require additional risk assessments, operator training and the implementation of laser safety procedures. Always ensure the laser system is installed and operated in accordance with applicable workplace safety requirements.

Consult your health and safety advisor and insurance provider to ensure your facility meets all applicable requirements before commissioning the machine.
